基于CefSharp开发浏览器（八）浏览器收藏夹栏 - 咸鱼翻身？ - 博客园

2021-03-04 分类：C# / 架构设计 阅读(532) 评论(0)

来源： 基于CefSharp开发浏览器（八）浏览器收藏夹栏 – 咸鱼翻身？ – 博客园

一、前言

上一篇文章 基于CefSharp开发（七）浏览器收藏夹菜单 简单实现了部分收藏夹功能 如（添加文件夹、添加收藏、删除、右键菜单部分功能）

后续代码中对MTreeViewItem进行了扩展,增加了TextBox用于编辑Item及相应的依赖属性，实现了重命名操作。

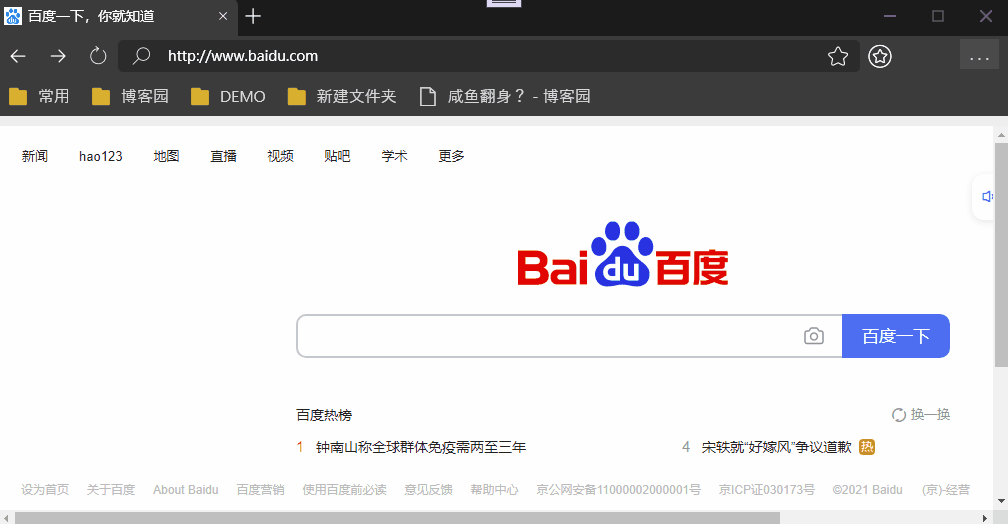

浏览器除了有收藏夹菜单，还需要有收藏夹栏用于快捷访问，本章将开发简易的收藏夹栏。

二、收藏夹栏分析

如下面两幅图所示，前者为收藏夹菜单样式，后者为收藏夹栏样式，两者数据结构相同，只是展示形式略有差异。故可采用同一数据结构

观其展示形式与MMenu接近，故此处将采用Menu进行样式扩展开发。

收藏夹栏支持右键功能，故需要添加ContextMenu支持。

收藏夹栏与收藏夹菜单展示的同一数据，属于同一功能，故需增加联动。

下面将逐步完成以上内容的开发，由于样式及结构均与收藏夹菜单接近，故本章不对样式进行叙述，直撸代码

三、创建自定义控件并添加至WebTabControlUc

1、新增定义控件MFavorites、MFavoritesItem

样式可复制MMenu、MMenuItem

MFavorites.xaml

复制代码
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:local="clr-namespace:Cys_CustomControls.Controls">
    <Style TargetType="{x:Type local:MFavorites}">
        <Setter Property="Foreground" Value="{DynamicResource ColorBrush.FontDefaultColor}"/>
        <Setter Property="Background" Value="Transparent"/>
        <Setter Property="Width" Value="Auto"/>
        <Setter Property="Height" Value="35"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type local:MFavorites}">
                    <Border Background="{TemplateBinding Background}"
                            BorderThickness="{TemplateBinding BorderThickness}"
                            BorderBrush="{TemplateBinding BorderBrush}"
                            Padding="{TemplateBinding Padding}"
                            SnapsToDevicePixels="true">
                        <ItemsPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"/>
                    </Border>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>
</ResourceDictionary>
复制代码

MFavorites.xaml.cs

复制代码
public class MFavorites : Menu
{
    static MFavorites()
    {
        DefaultStyleKeyProperty.OverrideMetadata(typeof(MFavorites), new FrameworkPropertyMetadata(typeof(MFavorites)));
    }
}
复制代码

MFavoritesItem.xaml

复制代码
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:local="clr-namespace:Cys_CustomControls.Controls">

    <ControlTemplate x:Key="MTopLevelHeaderTemplate" TargetType="{x:Type local:MFavoritesItem}">
        <Border x:Name="templateRoot" Background="{TemplateBinding Background}" BorderThickness="{TemplateBinding BorderThickness}" BorderBrush="{TemplateBinding BorderBrush}" CornerRadius="{TemplateBinding CornerRadius}" SnapsToDevicePixels="true">
            <Grid>
                <Grid VerticalAlignment="Center" HorizontalAlignment="Center" x:Name="PART_TextGrid" Opacity="0.8" Margin="10,0">
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="Auto"/>
                        <ColumnDefinition Width="Auto"/>
                    </Grid.ColumnDefinitions>
                    <TextBlock x:Name="Icon" FontSize="20" HorizontalAlignment="Center" Text="{TemplateBinding Icon}" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="Center" Foreground="{TemplateBinding IconForeground}"/>
                    <ContentPresenter Margin="10,0,0,0" Grid.Column="1" ContentSource="Header" x:Name="PART_Header" HorizontalAlignment="Center" RecognizesAccessKey="True" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="Center"/>
                </Grid>
                <Popup x:Name="PART_Popup" AllowsTransparency="true" Focusable="false" IsOpen="{Binding IsSubmenuOpen, RelativeSource={RelativeSource TemplatedParent}}"
                   Placement="Bottom" PopupAnimation="{DynamicResource {x:Static SystemParameters.MenuPopupAnimationKey}}" PlacementTarget="{Binding ElementName=templateRoot}" Width="{TemplateBinding PopupWidth}">
                    <Border x:Name="SubMenuBorder" Margin="0 0 5 5" >
                        <Border.Effect>
                            <DropShadowEffect Color="{DynamicResource Color.MenuItemDropShadowBrush}" Opacity="0.3" ShadowDepth="3"/>
                        </Border.Effect>
                        <Border Background="{DynamicResource WebBrowserBrushes.WebMenuBackground}" BorderThickness="1" CornerRadius="5">
                            <ScrollViewer x:Name="SubMenuScrollViewer" Style="{DynamicResource {ComponentResourceKey ResourceId=MenuScrollViewer, TypeInTargetAssembly={x:Type FrameworkElement}}}" Margin="0,5">
                                <Grid RenderOptions.ClearTypeHint="Enabled" Background="Transparent">
                                    <Canvas HorizontalAlignment="Left" Height="0" VerticalAlignment="Top" Width="0">
                                        <Rectangle x:Name="OpaqueRect" Fill="{Binding Background, ElementName=SubMenuBorder}"
                                                   Height="{Binding ActualHeight, ElementName=SubMenuBorder}"
                                                   Width="{Binding ActualWidth, ElementName=SubMenuBorder}"/>
                                    </Canvas>
                                    <ItemsPresenter x:Name="ItemsPresenter" KeyboardNavigation.DirectionalNavigation="Cycle"
                                                    Grid.IsSharedSizeScope="true" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" KeyboardNavigation.TabNavigation="Cycle"/>
                                </Grid>
                            </ScrollViewer>
                        </Border>
                    </Border>
                </Popup>
            </Grid>
        </Border>
        <ControlTemplate.Triggers>
            <Trigger Property="IsSuspendingPopupAnimation" Value="true">
                <Setter Property="PopupAnimation" TargetName="PART_Popup" Value="None"/>
            </Trigger>
            <!--<Trigger Property="Icon" Value="{x:Null}">
                <Setter Property="Visibility" TargetName="Icon" Value="Collapsed"/>
            </Trigger>-->
            <Trigger Property="ScrollViewer.CanContentScroll" SourceName="SubMenuScrollViewer" Value="false">
                <Setter Property="Canvas.Top" TargetName="OpaqueRect" Value="{Binding VerticalOffset, ElementName=SubMenuScrollViewer}"/>
                <Setter Property="Canvas.Left" TargetName="OpaqueRect" Value="{Binding HorizontalOffset, ElementName=SubMenuScrollViewer}"/>
            </Trigger>
            <Trigger Property="IsHighlighted" Value="True">
                <Setter TargetName="templateRoot" Property="Background"  Value="{DynamicResource WebBrowserBrushes.WebMenuIsMouseOverBackground}"/>
                <Setter TargetName="PART_TextGrid" Property="Opacity"  Value="1"/>
            </Trigger>
        </ControlTemplate.Triggers>
    </ControlTemplate>

    <ControlTemplate x:Key="MTopLevelItemTemplate" TargetType="{x:Type local:MFavoritesItem}">
        <Border x:Name="templateRoot" Background="{TemplateBinding Background}" BorderThickness="{TemplateBinding BorderThickness}" BorderBrush="{TemplateBinding BorderBrush}" CornerRadius="{TemplateBinding CornerRadius}" SnapsToDevicePixels="true">
            <Grid VerticalAlignment="Center" HorizontalAlignment="Center" x:Name="PART_TextGrid" Opacity="0.8" Margin="10,0">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="Auto"/>
                    <ColumnDefinition Width="Auto"/>
                </Grid.ColumnDefinitions>
                <TextBlock x:Name="Icon" FontSize="20" HorizontalAlignment="Center" Text="{TemplateBinding Icon}" Foreground="{TemplateBinding IconForeground}" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="Center"/>
                <ContentPresenter Margin="10,0,0,0" ContentSource="Header" HorizontalAlignment="Center" Grid.Column="1" RecognizesAccessKey="True" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="Center"/>
            </Grid>
        </Border>
        <ControlTemplate.Triggers>
            <!--<Trigger Property="Icon" Value="{x:Null}">
                <Setter Property="Visibility" TargetName="Icon" Value="Collapsed"/>
            </Trigger>-->
            <Trigger Property="IsHighlighted" Value="True">
                <Setter TargetName="templateRoot" Property="Background"  Value="{DynamicResource WebBrowserBrushes.WebMenuIsMouseOverBackground}"/>
                <Setter TargetName="PART_TextGrid" Property="Opacity"  Value="1"/>
            </Trigger>
        </ControlTemplate.Triggers>
    </ControlTemplate>

    <ControlTemplate  x:Key="MSubmenuHeaderTemplate" TargetType="{x:Type local:MFavoritesItem}">
        <Border x:Name="templateRoot" Background="{TemplateBinding Background}" BorderThickness="{TemplateBinding BorderThickness}" BorderBrush="{TemplateBinding BorderBrush}" Height="35" SnapsToDevicePixels="true">
            <Grid >
                <Grid HorizontalAlignment="Left" VerticalAlignment="Center" Margin="10,0">
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="Auto"/>
                        <ColumnDefinition Width="Auto"/>
                    </Grid.ColumnDefinitions>
                    <TextBlock Grid.Column="0" x:Name="Icon" Width="20" FontSize="20" HorizontalAlignment="Center" Text="{TemplateBinding Icon}" Foreground="{TemplateBinding IconForeground}"
                               SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="Center"/>
                    <ContentPresenter Margin="10,0,0,0" Grid.Column="1" ContentSource="Header"  HorizontalAlignment="Center" RecognizesAccessKey="True" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="Center"/>
                </Grid>
                <Path x:Name="RightArrow" Data="M 0,0 L 7,7 L 0,14 Z"
                      Fill="{TemplateBinding Foreground}"
                      HorizontalAlignment="Right" Margin="0,0,5,0" VerticalAlignment="Center" Opacity="0.6"/>

                <Popup x:Name="PART_Popup" AllowsTransparency="true" Focusable="false" IsOpen="{Binding IsSubmenuOpen, RelativeSource={RelativeSource TemplatedParent}}"
                   Placement="Right" PopupAnimation="{DynamicResource {x:Static SystemParameters.MenuPopupAnimationKey}}" PlacementTarget="{Binding ElementName=templateRoot}" VerticalOffset="-5" Width="{TemplateBinding PopupWidth}">
                    <Border x:Name="SubMenuBorder" Margin="0 0 5 5" >
                        <Border.Effect>
                            <DropShadowEffect Color="{DynamicResource Color.MenuItemDropShadowBrush}" Opacity="0.3" ShadowDepth="3"/>
                        </Border.Effect>
                        <Border Background="{DynamicResource WebBrowserBrushes.WebMenuBackground}" BorderThickness="1" CornerRadius="5">
                            <ScrollViewer x:Name="SubMenuScrollViewer" Style="{DynamicResource {ComponentResourceKey ResourceId=MenuScrollViewer, TypeInTargetAssembly={x:Type FrameworkElement}}}" Margin="0,5">
                                <Grid RenderOptions.ClearTypeHint="Enabled" Background="Transparent">
                                    <Canvas HorizontalAlignment="Left" Height="0" VerticalAlignment="Top" Width="0">
                                        <Rectangle x:Name="OpaqueRect" Fill="{Binding Background, ElementName=SubMenuBorder}"
                                                   Height="{Binding ActualHeight, ElementName=SubMenuBorder}"
                                                   Width="{Binding ActualWidth, ElementName=SubMenuBorder}"/>
                                    </Canvas>
                                    <ItemsPresenter x:Name="ItemsPresenter" KeyboardNavigation.DirectionalNavigation="Cycle"
                                                    Grid.IsSharedSizeScope="true" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" KeyboardNavigation.TabNavigation="Cycle"/>
                                </Grid>
                            </ScrollViewer>
                        </Border>
                    </Border>
                </Popup>
            </Grid>
        </Border>
        <ControlTemplate.Triggers>
            <Trigger Property="IsSuspendingPopupAnimation" Value="true">
                <Setter Property="PopupAnimation" TargetName="PART_Popup" Value="None"/>
            </Trigger>
            <!--<Trigger Property="Icon" Value="{x:Null}">
                <Setter Property="Visibility" TargetName="Icon" Value="Collapsed"/>
            </Trigger>-->
            <Trigger Property="IsChecked" Value="True">
                <Setter Property="Visibility" TargetName="Icon" Value="Collapsed"/>
            </Trigger>
            <Trigger Property="ScrollViewer.CanContentScroll" SourceName="SubMenuScrollViewer" Value="false">
                <Setter Property="Canvas.Top" TargetName="OpaqueRect" Value="{Binding VerticalOffset, ElementName=SubMenuScrollViewer}"/>
                <Setter Property="Canvas.Left" TargetName="OpaqueRect" Value="{Binding HorizontalOffset, ElementName=SubMenuScrollViewer}"/>
            </Trigger>
            <Trigger Property="IsHighlighted" Value="True">
                <Setter TargetName="templateRoot" Property="Background"  Value="{DynamicResource WebBrowserBrushes.WebMenuIsMouseOverBackground}"/>
            </Trigger>
        </ControlTemplate.Triggers>
    </ControlTemplate>

    <ControlTemplate x:Key="MSubmenuItemTemplate" TargetType="{x:Type local:MFavoritesItem}">
        <Border x:Name="templateRoot" Background="{TemplateBinding Background}" BorderThickness="{TemplateBinding BorderThickness}" BorderBrush="{TemplateBinding BorderBrush}" Height="35" SnapsToDevicePixels="true">
            <Grid HorizontalAlignment="Left" VerticalAlignment="Center" Margin="10,0">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="Auto"/>
                    <ColumnDefinition Width="Auto"/>
                </Grid.ColumnDefinitions>
                <TextBlock Grid.Column="0" x:Name="Icon" Width="20" FontSize="20" HorizontalAlignment="Center" Text="{TemplateBinding Icon}" Foreground="{TemplateBinding IconForeground}"
                           SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="Center"/>
                <ContentPresenter Margin="10,0,0,0" Grid.Column="1" x:Name="menuHeaderContainer"  HorizontalAlignment="Center" ContentSource="Header" RecognizesAccessKey="True"
                                  SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="Center"/>
            </Grid>
        </Border>
        <ControlTemplate.Triggers>
            <!--<Trigger Property="Icon" Value="{x:Null}">
                <Setter Property="Visibility" TargetName="Icon" Value="Collapsed"/>
            </Trigger>-->
            <Trigger Property="IsChecked" Value="True">
                <Setter Property="Visibility" TargetName="Icon" Value="Collapsed"/>
            </Trigger>
            <Trigger Property="IsHighlighted" Value="True">
                <Setter TargetName="templateRoot" Property="Background"  Value="{DynamicResource WebBrowserBrushes.WebMenuIsMouseOverBackground}"/>
            </Trigger>
        </ControlTemplate.Triggers>
    </ControlTemplate>

    <Style TargetType="{x:Type local:MFavoritesItem}">
        <Setter Property="BorderBrush" Value="Transparent"/>
        <Setter Property="CornerRadius" Value="5"/>
        <Setter Property="Background" Value="{DynamicResource WebBrowserBrushes.TabHeaderIsSelectedBackground}"/>
        <Setter Property="Foreground" Value="{DynamicResource ColorBrush.FontPrimaryColor}"/>
        <Setter Property="FontSize" Value="13"/>
        <Setter Property="FontFamily" Value="Microsoft YaHei"/>
        <Setter Property="Cursor" Value="Hand"/>
        <Setter Property="Height" Value="35"/>
        <Setter Property="Width" Value="Auto"/>
        <Setter Property="MinWidth" Value="40"/>
        <Setter Property="HorizontalContentAlignment" Value="{Binding HorizontalContentAlignment, RelativeSource={RelativeSource AncestorType={x:Type ItemsControl}}}"/>
        <Setter Property="VerticalContentAlignment" Value="{Binding VerticalContentAlignment, RelativeSource={RelativeSource AncestorType={x:Type ItemsControl}}}"/>
        <Setter Property="ScrollViewer.PanningMode" Value="Both"/>
        <Setter Property="Stylus.IsFlicksEnabled" Value="False"/>
        <Setter Property="Template" Value="{StaticResource MSubmenuItemTemplate}"/>
        <Style.Triggers>
            <Trigger Property="Role" Value="TopLevelHeader">
                <Setter Property="BorderThickness" Value="0,0,1,0"/>
                <Setter Property="PopupWidth" Value="300"/>
                <Setter Property="Template" Value="{StaticResource MTopLevelHeaderTemplate}"/>
            </Trigger>
            <Trigger Property="Role" Value="TopLevelItem">
                <Setter Property="BorderThickness" Value="0,0,1,0"/>
                <Setter Property="Template" Value="{StaticResource MTopLevelItemTemplate}"/>
            </Trigger>
            <Trigger Property="Role" Value="SubmenuHeader">
                <Setter Property="PopupWidth" Value="300"/>
                <Setter Property="Background" Value="Transparent"/>
                <Setter Property="Foreground" Value="{DynamicResource ColorBrush.FontPrimaryColor}"/>
                <Setter Property="Template" Value="{StaticResource MSubmenuHeaderTemplate}"/>
                <Setter Property="Padding" Value="3,0,0,0"/>
            </Trigger>
            <Trigger Property="Role" Value="SubmenuItem">
                <Setter Property="Foreground" Value="{DynamicResource ColorBrush.FontPrimaryColor}"/>
                <Setter Property="Background" Value="Transparent"/>
                <Setter Property="Template" Value="{StaticResource MSubmenuItemTemplate}"/>
                <Setter Property="Padding" Value="3,0,0,0"/>
            </Trigger>
        </Style.Triggers>
    </Style>
</ResourceDictionary>
复制代码

MFavoritesItem.xaml.cs

复制代码
public class MFavoritesItem : MenuItem
{
    static MFavoritesItem()
    {
        DefaultStyleKeyProperty.OverrideMetadata(typeof(MFavoritesItem), new FrameworkPropertyMetadata(typeof(MFavoritesItem)));
    }

    #region == DependencyProperty==
    #region == CornerRadius==
    public static readonly DependencyProperty CornerRadiusProperty = DependencyProperty.Register("CornerRadius", typeof(CornerRadius), typeof(MFavoritesItem),
        new PropertyMetadata(null));

    /// <summary>
    /// CornerRadius
    /// </summary>
    public CornerRadius CornerRadius
    {
        get => (CornerRadius)GetValue(CornerRadiusProperty);
        set => SetValue(CornerRadiusProperty, value);
    }
    #endregion

    #region == PopupWidth==
    public static readonly DependencyProperty PopupWidthProperty = DependencyProperty.Register("PopupWidth", typeof(double), typeof(MFavoritesItem),
        new PropertyMetadata(null));

    /// <summary>
    /// PopupWidth
    /// </summary>
    public double PopupWidth
    {
        get => (double)GetValue(PopupWidthProperty);
        set => SetValue(PopupWidthProperty, value);
    }
    #endregion

    /// <summary>
    /// IconForeground 字体图标前景色
    /// </summary>
    public static readonly DependencyProperty IconForegroundProperty = DependencyProperty.Register("IconForeground", typeof(Brush), typeof(MFavoritesItem));
    public Brush IconForeground
    {
        get => (Brush)GetValue(IconForegroundProperty);
        set => SetValue(IconForegroundProperty, value);
    }

    /// <summary>
    /// ItemMargin
    /// </summary>
    public static readonly DependencyProperty ItemMarginProperty = DependencyProperty.Register("ItemMargin", typeof(Thickness), typeof(MFavoritesItem));
    public Thickness ItemMargin
    {
        get => (Thickness)GetValue(ItemMarginProperty);
        set => SetValue(ItemMarginProperty, value);
    }

    /// <summary>
    /// TextMaxWidth
    /// </summary>
    public static readonly DependencyProperty TextMaxWidthProperty = DependencyProperty.Register("TextMaxWidth", typeof(double), typeof(MFavoritesItem));
    public double TextMaxWidth
    {
        get => (double)GetValue(TextMaxWidthProperty);
        set => SetValue(TextMaxWidthProperty, value);
    }
    #endregion

    public int Type { get; set; }

    public int Level { get; set; }
    public int NodeId { get; set; }
}
复制代码

2、接着新增用户控件FavoritesBarUc

用于承接MFavorites代码如下：

FavoritesBarUc.xaml

复制代码
<UserControl x:Class="MWebBrowser.View.FavoritesBarUc"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:controls="clr-namespace:Cys_CustomControls.Controls;assembly=Cys_CustomControls"
             mc:Ignorable="d"
             d:DesignHeight="40" d:DesignWidth="800" Height="40" Background="{DynamicResource WebBrowserBrushes.TabHeaderIsSelectedBackground}">
    <Grid VerticalAlignment="Center">
        <controls:MFavorites x:Name="MenuParent" ContextMenuOpening="FavoritesTree_OnContextMenuOpening" ScrollViewer.HorizontalScrollBarVisibility="Hidden" PreviewMouseLeftButtonUp="FavoritesTree_OnPreviewMouseLeftButtonUp">
            <controls:MFavorites.ContextMenu>
                <ContextMenu x:Name="FavoritesContextMenu" Style="{DynamicResource WebCustomMenus.DefaultContextMenu}">
                    <controls:MMenuItem Tag="0" x:Name="OpenAllFolder" Header="全部打开（16个）" Icon="&#xe600;"/>
                    <controls:MMenuItem Tag="1" x:Name="OpenNewAllFolder" Header="在新建窗口中全部打开（16个）" Icon="&#xe602;"/>
                    <controls:MMenuItem Tag="2" Header="在新 InPrivate窗口全部打开（16个）" Icon="&#xe68c;"/>
                    <controls:MMenuItem Tag="4" Header="按名称排序" Icon="&#xe606;"/>
                    <controls:MMenuItem Tag="5" x:Name="ReName" Header="重命名" Icon="&#xe712;" Click="ReName_OnClick"/>
                    <controls:MMenuItem Tag="6" x:Name="DeleteNode" Header="删除" Icon="&#xe74e;" IconFontSize="26" Click="Delete_OnClick"/>
                    <controls:MMenuItem Tag="7" Header="将当前标签页添加到文件夹" Icon="&#xe659;" Click="AddFavorites_OnClick"/>
                    <controls:MMenuItem Tag="8" Header="将所有标签页添加到文件夹" Visibility="Collapsed"/>
                    <controls:MMenuItem Tag="9" Header="添加文件夹" Icon="&#xe652;" Click="AddFolder_OnClick"/>
                </ContextMenu>
            </controls:MFavorites.ContextMenu>
        </controls:MFavorites>
        <Popup x:Name="ReNamePop" PopupAnimation="Fade" Placement="Bottom"  PlacementTarget="{Binding ElementName=MenuParent}"
               StaysOpen="False" AllowsTransparency="True" VerticalOffset="-40">
            <Border Background="{DynamicResource WebBrowserBrushes.WebMenuBackground}" CornerRadius="5">
                <Border.Effect>
                    <DropShadowEffect Color="{DynamicResource Color.MenuItemDropShadowBrush}" Opacity="0.3" ShadowDepth="3"/>
                </Border.Effect>
                <Grid Width="320" Height="140">
                    <Grid Margin="20,20,20,0">
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto"/>
                            <RowDefinition Height="Auto"/>
                            <RowDefinition Height="Auto"/>
                        </Grid.RowDefinitions>
                        <TextBlock Grid.Row="0" Text="编辑文件夹名称" FontSize="18" Foreground="{DynamicResource ColorBrush.FontPrimaryColor}"/>
                        <StackPanel Grid.Row="1" Margin="0,10,0,0" Orientation="Horizontal" VerticalAlignment="Center">
                            <TextBlock Text="名称" Foreground="{DynamicResource ColorBrush.FontPrimaryColor}" VerticalAlignment="Center"/>
                            <TextBox x:Name="FolderName" Height="30" Width="236" Margin="10,0,0,0" Style="{DynamicResource TextBox.ReName}" VerticalAlignment="Center"/>
                        </StackPanel>
                        <StackPanel Grid.Row="2" Margin="0,15,0,0" Orientation="Horizontal" HorizontalAlignment="Right">
                            <Button Content="保存" Style="{DynamicResource Button.ReSave}" Click="ReSave_OnClick"/>
                            <Button Content="取消" Style="{DynamicResource Button.ReCancel}" Click="ReCancel_OnClick" Margin="10,0,0,0"/>
                        </StackPanel>
                    </Grid>
                </Grid>
            </Border>
        </Popup>
    </Grid>
</UserControl>
复制代码

FavoritesBarUc.xaml.cs

复制代码
using Cys_Common;
using Cys_Controls.Code;
using Cys_CustomControls.Controls;
using Cys_Model;
using MWebBrowser.Code.Helpers;
using MWebBrowser.ViewModel;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;
using System.Windows.Media;

namespace MWebBrowser.View
{
    /// <summary>
    /// Interaction logic for FavoritesBarUc.xaml
    /// </summary>
    public partial class FavoritesBarUc : UserControl
    {
        private readonly double _textMaxWidth = 300;
        /// <summary>
        /// 记录当前右键选中的Item;
        /// </summary>
        private MFavoritesItem _currentRightItem;
        public Func<WebTabControlViewModel> GetWebUrlEvent;
        public Action<string> OpenNewTabEvent;
        public FavoritesBarUc()
        {
            InitializeComponent();
            this.Loaded += FavoritesBarUc_Loaded;
        }

        private void FavoritesBarUc_Loaded(object sender, System.Windows.RoutedEventArgs e)
        {
            if (this.IsInDesignMode()) return;
            GetFavoritesInfo();
        }

        private void GetFavoritesInfo()
        {
            List<TreeNode> root = GetNodes(-1, GlobalInfo.FavoritesSetting.FavoritesInfos);
            if (root == null || root.Count <= 0 || root[0].ChildNodes.Count <= 0) return;
            foreach (var child in root[0].ChildNodes)
            {
                AddFavoritesItem(null, child, true);
            }
        }

        private List<TreeNode> GetNodes(int parentId, List<TreeNode> nodes)
        {
            List<TreeNode> mainNodes = nodes.Where(x => x.ParentId == parentId).OrderByDescending(x => x.Type).ToList();
            List<TreeNode> otherNodes = nodes.Where(x => x.ParentId != parentId).OrderByDescending(x => x.Type).ToList();
            foreach (TreeNode node in mainNodes)
                node.ChildNodes = GetNodes(node.NodeId, otherNodes);
            return mainNodes;
        }

        /// <summary>
        /// 递归添加子集
        /// </summary>
        /// <param name="parent"></param>
        /// <param name="treeNode"></param>
        /// <param name="isRoot"></param>
        private void AddFavoritesItem(MFavoritesItem parent, TreeNode treeNode, bool isRoot)
        {
            var item = GetNewFavoritesItem(treeNode);
            if (treeNode.ChildNodes.Count > 0)
            {
                foreach (var child in treeNode.ChildNodes)
                {
                    AddFavoritesItem(item, child, false);
                }
            }

            if (!isRoot)
                parent.Items.Add(item);
            else
                MenuParent.Items.Add(item);
        }

        /// <summary>
        /// 获取FavoritesItem
        /// </summary>
        /// <param name="treeNode"></param>
        /// <returns></returns>
        private MFavoritesItem GetNewFavoritesItem(TreeNode treeNode)
        {
            return new MFavoritesItem
            {
                Header = treeNode.NodeName,
                Type = treeNode.Type,
                NodeId = treeNode.NodeId,
                Level = treeNode.Level,
                TextMaxWidth = _textMaxWidth,
                Icon = treeNode.Type == 0 ? "\ueb1e" : "\ue903",
                IconForeground = treeNode.Type == 0 ? new SolidColorBrush(Color.FromRgb(255, 255, 255)) : new SolidColorBrush(Color.FromRgb(255, 205, 44)),
            };
        }

        /// <summary>
        /// 处理右键菜单打开前的行为
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void FavoritesTree_OnContextMenuOpening(object sender, ContextMenuEventArgs e)
        {
            _currentRightItem = ControlHelper.FindVisualParent<MFavoritesItem>(e.OriginalSource as DependencyObject);
            if (null == _currentRightItem)
            {
                e.Handled = true;
                return;
            }
            if (_currentRightItem.Type == 0)
            {
                OpenAllFolder.Visibility = Visibility.Collapsed;
                OpenNewAllFolder.Visibility = Visibility.Collapsed;
                ReName.Visibility = Visibility.Collapsed;
            }
            else
            {
                OpenAllFolder.Visibility = Visibility.Visible;
                OpenNewAllFolder.Visibility = Visibility.Visible;
                ReName.Visibility = Visibility.Visible;
            }
        }

        private void FavoritesTree_OnPreviewMouseLeftButtonUp(object sender, MouseButtonEventArgs e)
        {
            var item = ControlHelper.FindVisualParent<MFavoritesItem>(e.OriginalSource as DependencyObject);
            if (item.Type == 1) return;
            if (!GlobalInfo.FavoritesSetting.FavoritesInfos.Exists(x => x.NodeId == item.NodeId)) return;
            var treeNode = GlobalInfo.FavoritesSetting.FavoritesInfos.First(x => x.NodeId == item.NodeId);
            OpenNewTabEvent?.Invoke(treeNode.Url);
        }

        /// <summary>
        /// 添加收藏
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void AddFavorites_OnClick(object sender, RoutedEventArgs e)
        {
            var model = GetWebUrlEvent?.Invoke();
            if (null == model) return;
            if (_currentRightItem?.Type != 1) return;
            var newTreeNode = GetNewTreeNodeInfo(false, 0, model.Title, model.CurrentUrl);
            _currentRightItem.Items.Add(newTreeNode.Item2);
            GlobalInfo.FavoritesSetting.FavoritesInfos.Add(newTreeNode.Item1);
        }
        /// <summary>
        /// 添加文件夹
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void AddFolder_OnClick(object sender, RoutedEventArgs e)
        {
            var newTreeNode = GetNewTreeNodeInfo(false, 1, "新建文件夹", null);
            if (_currentRightItem != null && _currentRightItem.Type == 1)
            {
                _currentRightItem.Items.Add(newTreeNode.Item2);
                GlobalInfo.FavoritesSetting.FavoritesInfos.Add(newTreeNode.Item1);
            }
        }

        private Tuple<TreeNode, MFavoritesItem> GetNewTreeNodeInfo(bool isRoot, int type, string nodeName, string url)
        {
            int parentId = 0;
            int level = 1;
            if (!isRoot)
            {
                parentId = _currentRightItem.NodeId;
                level = parentId == -1 ? +1 : _currentRightItem.Level + 1;
            }
            int nodeMax = GlobalInfo.FavoritesSetting.FavoritesInfos.Max(x => x.NodeId);
            var treeNode = new TreeNode
            {
                Url = url,
                ParentId = parentId,
                NodeId = nodeMax + 1,
                NodeName = nodeName,
                Type = type,
                Level = level,
            };
            var favoritesItem = GetNewFavoritesItem(treeNode);
            return new Tuple<TreeNode, MFavoritesItem>(treeNode, favoritesItem);
        }

        #region 右键菜单操作

        /// <summary>
        /// 删除当前节点
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void Delete_OnClick(object sender, RoutedEventArgs e)
        {
            if (_currentRightItem?.Parent == null) return;
            for (int i = _currentRightItem.Items.Count; i > 0; i--)
            {
                _currentRightItem.Items.Remove(_currentRightItem.Items[^1]);
                if (!GlobalInfo.FavoritesSetting.FavoritesInfos.Exists(x => x.NodeId == _currentRightItem.NodeId))
                    continue;
            }

            if (_currentRightItem.Parent is MFavoritesItem items)
            {
                if (GlobalInfo.FavoritesSetting.FavoritesInfos.Exists(x => x.NodeId == _currentRightItem.NodeId))
                {
                    var currentNode = (GlobalInfo.FavoritesSetting.FavoritesInfos.FirstOrDefault(x => x.NodeId == _currentRightItem.NodeId));
                    GlobalInfo.FavoritesSetting.FavoritesInfos.Remove(currentNode);
                }
                items.Items.Remove(_currentRightItem);
            }

            if (_currentRightItem.Parent is MFavorites parent)
            {
                if (GlobalInfo.FavoritesSetting.FavoritesInfos.Exists(x => x.NodeId == _currentRightItem.NodeId))
                {
                    var currentNode = (GlobalInfo.FavoritesSetting.FavoritesInfos.FirstOrDefault(x => x.NodeId == _currentRightItem.NodeId));
                    GlobalInfo.FavoritesSetting.FavoritesInfos.Remove(currentNode);
                }
                parent.Items.Remove(_currentRightItem);
            }
        }

        #region 重命名

        private void ReName_OnClick(object sender, RoutedEventArgs e)
        {
            if (null == _currentRightItem) return;
            if (_currentRightItem.Type == 0) return;

            ReNamePop.HorizontalOffset = (this.ActualWidth - 320) / 2;
            ReNamePop.IsOpen = true;
        }

        private void ReCancel_OnClick(object sender, RoutedEventArgs e)
        {
            ReNamePop.IsOpen = false;
        }

        private void ReSave_OnClick(object sender, RoutedEventArgs e)
        {
            ReNamePop.IsOpen = false;
            _currentRightItem.Header = FolderName.Text;
            if (!GlobalInfo.FavoritesSetting.FavoritesInfos.Exists(x => x.NodeId == _currentRightItem.NodeId)) return;
            var treeNode = GlobalInfo.FavoritesSetting.FavoritesInfos.First(x => x.NodeId == _currentRightItem.NodeId);
            treeNode.NodeName = FolderName.Text;
        }

        #endregion

        #endregion
    }
}
复制代码

该类中的方法用于初始化MFavorites数据

3、更改WebTabControlUc布局

新增一行用于展示FavoritesBarUc

<webBrowser:FavoritesBarUc Grid.Row="2"/>

四、运行效果

五、源码地址

gitee地址：https://gitee.com/sirius_machao/mweb-browser

项目邀请：如对该项目有兴趣，欢迎联系我共同开发！！！

赞(0) 打赏
分享到： 更多 (0)
标签：

相关推荐

热门标签

C# (810)ASP.NET MVC (618)Android (587)ASP.NET (447)数据库 (299)JavaScript (285)JQuery (221)PHP (209)SQLServer (197)程序开发 (156)架构设计 (155)源价值 (155)SQL (128)Java (111)EasyUi (85)教程 (76)网站 (67)Debug (63)互联网 (63)MySQL (59)Flash (56)搜索优化 (54)创意 (53)SEO (51)ASP.NET MVC3 (51)电子商务 (50)建站经验 (49)实例代码 (49)源码下载 (47)原创 (45)

分类目录

链接表

觉得文章有用就打赏一下文章作者

支付宝扫一扫打赏

微信扫一扫打赏
